उत्पाद विवरण:
|
| आवृति सीमा: | 64 हर्ट्ज~5 मेगाहर्ट्ज (समायोज्य) | Gain range: | 0~90 dB, adjustable in step of 0.5 dB |
|---|---|---|---|
| चरण घूर्णन: | 0~360, 1 के चरण में समायोज्य | संचार: | USB |
| हाई लाइट: | Eddy Current Flaw Detector,Portable Current Flaw Detector,HEF-301 Current Flaw Detector |
||

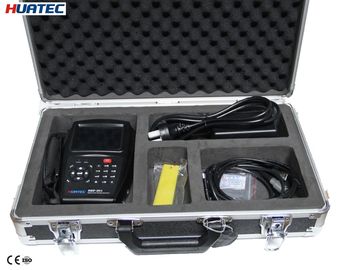

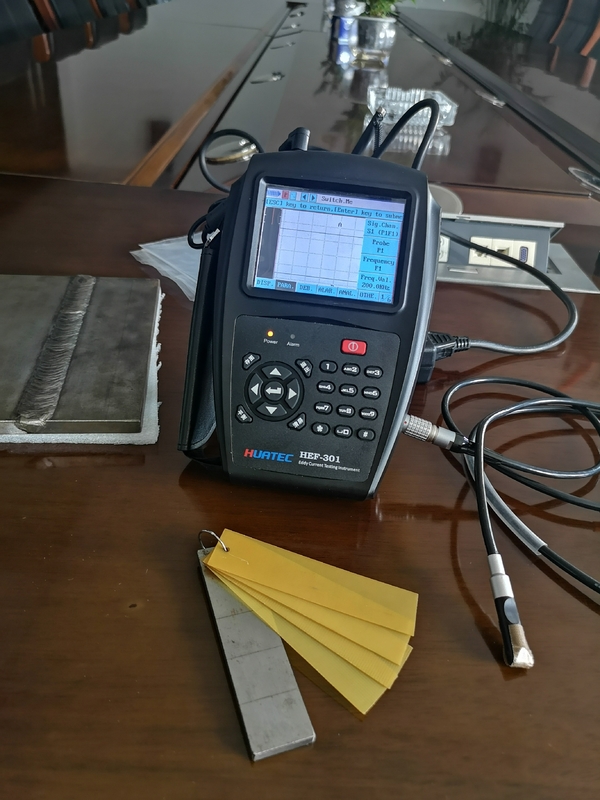

Portable Eddy Current Flaw Detector HEF-301
HEF-301 has high sensitivity for discontinuities of metal materials, such as cracks on copper pipe
surface, puckers and scars of steel pipe, pits, scratches, wear scars, transverse fissures or
separation layers etc.
| Frequency range | 64 Hz~5 MHz (adjustable) |
| Gain range | 0~90 dB, adjustable in step of 0.5 dB |
| Phase rotation | 0~360 , adjustable in step of 1 |
| Communication | USB |
| Optional | Optional in absolute probe, differential probe and self- comparing probe |
| Boundary dimension | 183x120x44 (mm) |
| Weight | 600g |
| Gross weight | 4kgs |
