उत्पाद विवरण:
|
| मापने की सीमा: | 100-400 एचबीएस | स्टील बॉल व्यास: | 10 मिमी |
|---|---|---|---|
| प्रभाव क्षमता: | 4.9जे | DIMENSIONS: | Φ55 x 370मिमी |
| प्रमुखता देना: | Portable Brinell Hardness Tester,Brinell Hardness Tester 4.9J Impact Force,On-site Heavy Workpiece Hardness Detector |
||

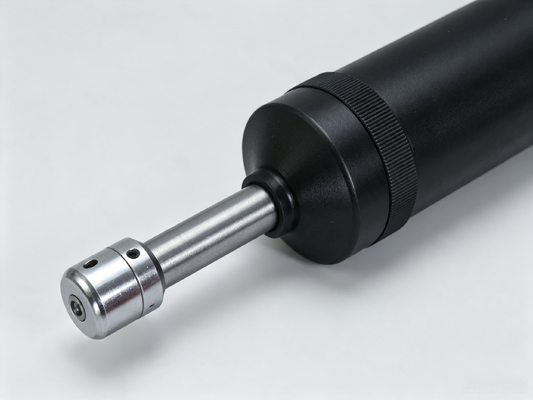

HBX-0.5 Portable Brinell Hardness Tester 4.9J Impact Force On-site Heavy Workpiece Hardness Detector
Feature & Use:
Small volume, convenient for carrying, easy operation
Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10
It can be used to determine the Brinell hardness of ferrous metals with elastic modulus approximate to 2×105 MPa. It is especially suitable to determine the hardness of heavy parts on the spot.
Specifications:
| Measuring range | 100-400HBS |
| Steel ball diameter | 10mm |
| Impact capacity | 4.9J |
| Dimensions | Φ55 x 370mm |
| Weight | approx.3.3kg |

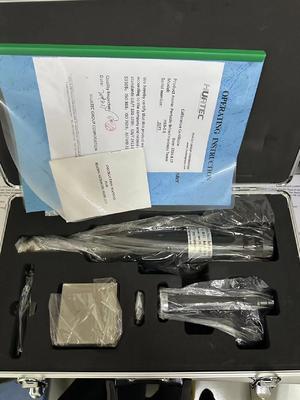

Standard accessories:
Portable Brinell standardized block: 1 pc.
20X Readout microscope: 1 pc
