उत्पाद विवरण:
|
| माप श्रेणी: | टीई: 0.65 मिमी ~ 400.0 मिमी ईई: 3.00 मिमी ~ 25.00 मिमी | संकल्प: | 0.01 मिमी (0.001 इंच) |
|---|---|---|---|
| वेग सीमा: | 1000 मी/से ~ 9999 मी/से | याद: | 100 फाइलों में 10,000 रीडिंग |
| मापने की इकाइयाँ: | मिमी/इंच | मापन दर: | 2/s और 10/s तेज़ मोड में |
| प्रमुखता देना: | Ultrasonic thickness gauge thru-coating,Metal wall thickness tester 0.01mm,A&B scan echo thickness gauge |
||

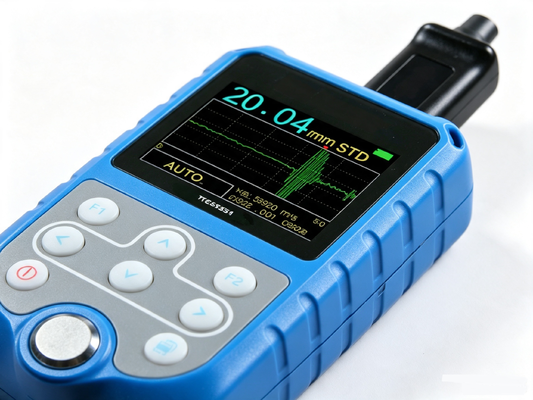

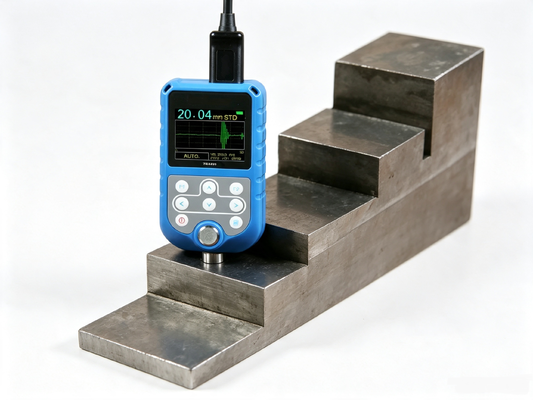

TG-3251 A&B Scan Echo to Echo Ultrasonic Thickness Gauge 0.01mm Resolution Thru-Coating Metal Wall Thickness Tester
Features
● A&B Scan and big digits display
● Color TFT display 320×240
● Resolution 0.01 mm, measuring range T-E 0.65mm-400mm depending on different probes and E-E 3-25mm (Thru-coating)
● 5MHz Dual Element probe D5301 is standard delivery, optional 2MHz probe D2012, 5MHz probe D5008, 5MHz high temperature probe D5113, 7.5MHz probe D7006 and 10MHz probe D7004
● Cooperate with probe D1025 for Fiberglass and composite materials
● Automatic probe recognition and Automatic zero calibration
● Automatic measurement and manual-measurement selectable
● Automatically locates the detection point
● Measurement screen is automatic frozen, which make it easy to analyze the
data for the user
● Memory of 100 files X 100 data, transfer data to PC without software,
available for any windows operating systems
● English, Japanese menu language option
|
Technical Specification:
|
|||||||||||||||||||||||||||||||||||||||
|
Standard Delivery ●Main Unit ● Dual elementprobe (D5301 or D1025) ● 75ML Couplant ●Build-in calibration block (Thickness=4mm, Velocity = 5920m/s) ● USB Cable ●Carrying case ●Operating manual ● Calibration Certificate |
|
||||||||||||||||||||||||||||||||||||||
