उत्पाद विवरण:
|
| प्रोडक्ट का नाम: | चलती चुंबकीय कण दोष डिटेक्टर | एसी चुंबकीयकरण धारा: | AC 0~1500A (प्रभावी मान) लगातार समायोज्य |
|---|---|---|---|
| आउटपुट केबल: | 3 मीटर के 2 कॉपर-कोर लचीले केबल (120 मिमी2)। | बिजली की आपूर्ति: | 220V (दो-चरण तीन-तार प्रणाली) |
| प्रमुखता देना: | 1500A magnetic particle flaw detector,movable flaw detector with demagnetizing,AC/HWDC non-destructive testing equipment |
||

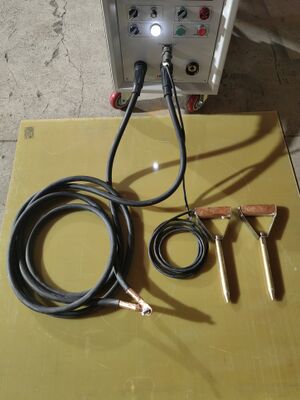

AC/HWDC 1500A Movable Magnetic Particle Flaw Detector with Automatic Demagnetizing Function
The HCDX-1500 mobile magnetic particle flaw detector can magnetize parts in AC (or half wave DC magnetization HWDC). And with automatic demagnetization function, no additional demagnetization device is required. 8-bit MCU is adopted as the controller by this magnetic particles flaw detector, and the continuous regulation of magnetizing current can be realized through the precise collection of the AC zero voltage crossing signal and the signal of current regulation. It has the function of maximum current limit. With the function of phase controlled, the detector is suitable for both continuous technique and residual technique.
Technical parameters:
| AC magnetizing current (AC) | 0 ~ 1500A (true RMS) |
| Half wave DC magnetizing current (HWDC) | 0 ~ 1500A (2 times the average) |
| Demagnetization | (AC) 1500 ~ 0A (HWDC) 1500 to 0A |
| Temporary load rate | ≤30% |
| Demagnetization time | < 5s |
| Input voltage | 380V 50Hz |
Main functions:
Detection methods: support rod method, winding method, coil method
Magnetization method: AC magnetization, DC magnetization (HWDC), pulse magnetization
Demagnetization method: AC demagnetization using far away method demagnetization (attenuation method), AC demagnetization using ultra-low frequency demagnetization
Standard configuration:
Mobile host 1
Support rod probe 1 set
robe cable 1
Foot switch 1
Optional accessories:
Fixed coil
Wound cable
