उत्पाद विवरण:
|
| संवेदनशीलता: | A1 प्रकार मानक परीक्षण फिल्म 15/100 खांचे स्पष्ट रूप से प्रदर्शित, राष्ट्रीय मानक से बेहतर | उठाने का बल: | एसी ≥68.6एन (7किग्रा) |
|---|---|---|---|
| जांच ध्रुव दूरी: | 60mm-205mm (अंतर सीमा समायोज्य है) | जांच प्रकाश स्रोत: | सफेद प्रकाश प्रदीप्ति ≥2000Lux; यूवी लैंप विकिरण ≥5000μw/c㎡ |
| जांच मात्रा: | 200मिमी*48मिमी*158मिमी | जांच का वजन: | 2.0 किग्रा |
| प्रमुखता देना: | waterproof handheld AC yoke magnetic flaw detector,UV lamp white light flaw detector,magnetic flaw detector with waterproof performance |
||

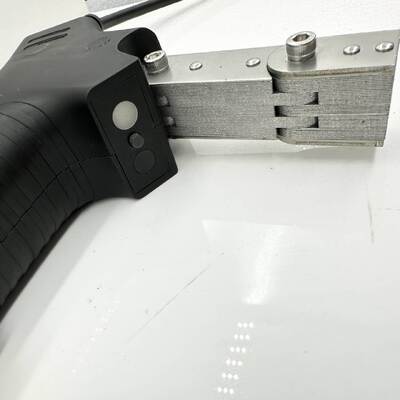

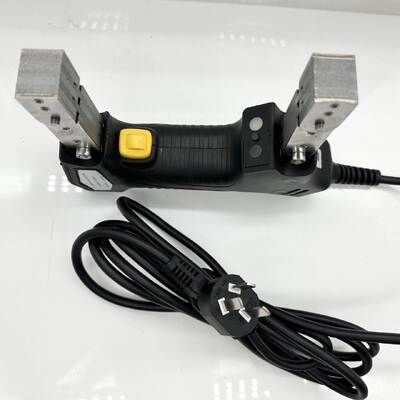

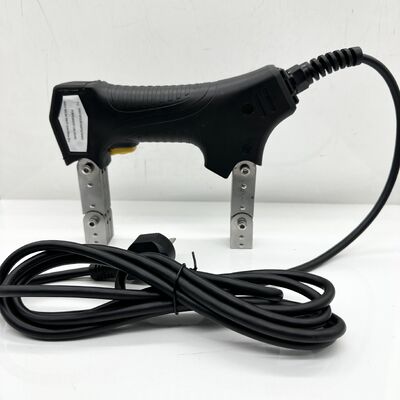

With Waterproof Performance Handheld AC Yoke Magnetic Flaw Detector UV Lamp & White Light
Application
•Surface and subsurface testing for field testing
•Surface and subsurface for spot inspections
•Surface and subsurface for in-service inspections
•Surface and subsurface for demanding environments
•Surface and subsurface for weld inspection
Technical parameter
| Sensitivity | A1 type standard test film 15/100 grooves display clearly, better than the national standard |
| Lifting force | AC ≥68.6N (7kg) |
| Probe pole distance | 60mm-205mm (spacing range is adjustable) |
| Probe light source |
white light illuminance ≥2000Lux; Uv lamp irradiance ≥5000μw/c㎡ |
| Probe volume | 200mm*48mm*158mm |
| Probe weight | 2.0kg |
Functional characteristics
1. AC working mode, the probe can be directly connected to the AC220V power supply for flaw detection work;
2, The lamp is automatically lit when magnetized, the UV and white light can be switched, and the fluorescent magnetic particle detection and ordinary magnetic particle detection can be performed;
3, High sensitivity, strong lifting force, high flaw detection efficiency.
4. Duty time: 5 minutes on,1 minute off
5. Sealed, durable construction
Standards conform
• ASME BPVC
• ASTM E709
• ASTM E1444
• ASTM E3024
• ISO 9934-3
Configuration list
1, D type yoke 1 set (including 3 meters probe line)
2. 1 set of auxiliary tools
3, User manual, warranty card, certificate of 1

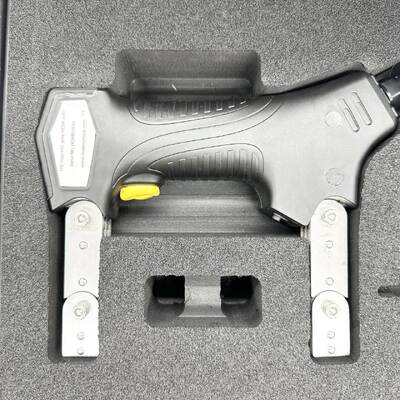

4, Instrument box
