उत्पाद विवरण:
|
| सामग्री: | कार्बन स्टील | मानक: | एपीआई आरपी 2X-2004 |
|---|---|---|---|
| प्रमुखता देना: | API RP 2X calibration block,angle beam ultrasonic testing block,NDT calibration block with warranty |
||

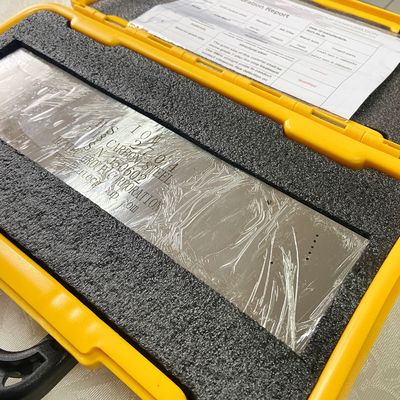

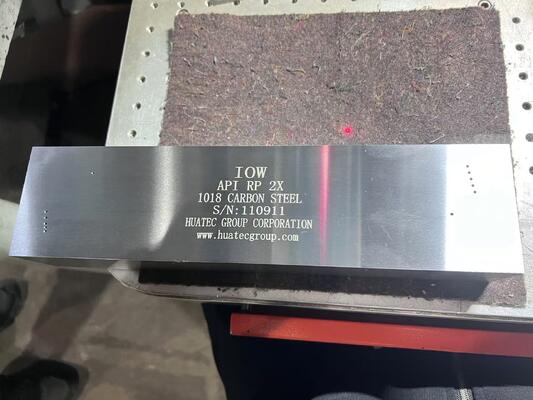

IOW Calibration Block API RP 2X-2004 Standard for Angle Beam Ultrasonic Testing
Standard: API RP 2X-2004
Application:
Beam profile measurement of angle beam transducers.
Geometry:
| Material | Carbon steel |
| Specification |
2" x 3" x 12" Contains two 1/16" diameter x 7/8" deep calibration holes on the near side and two 1/16" diameter x 7/8" deep calibration holes on the far side. Also contains five 1/16" diameter resolution holes drilled on 10º slope; far side only. |
![]()
![]()
![]()
