उत्पाद विवरण:
|
| सामग्री: | 1018 स्टील | मानक: | एएसएमई बीपीवीसी-वी-2015 |
|---|---|---|---|
| प्रमुखता देना: | ASME Standard 1018 Steel Test Block,Non-Pipe Weld UT Calibration Block,38mm Steel NDT Calibration Block |
||

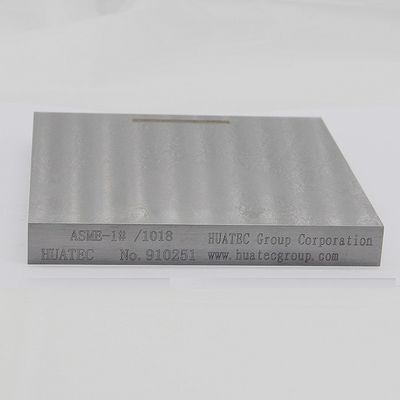

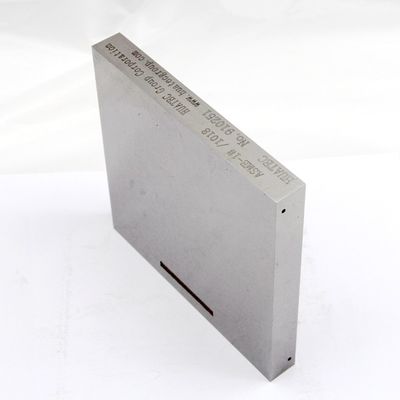

Non-Pipe 19mm 38mm 75mm Weld ASME Standard 1018 Steel UT Calibration Test Block
Standard: ASME BPVC-V-2015
The size and shape of ASME non-pipe weld test block are shown in the chart below, when inspected
For inspection on materials with surface diameter greater than 500mm, test blocks with the same curvature as the workpiece or standard test blocks with a diameter equal to or less than 500mm can be used
During the upper inspection, the curve test block, namely the tube seam test block, should be used.
1. The distance between each slot and either end of the test block or other slots is not less than T or 25mm, if larger.
2. The minimum length L of the test block shall be 200mm or 8T, if larger.
3. When the inner diameter is equal to or less than 100mm, the minimum radian is 270°. When the inner diameter is greater than 100mm, the minimum arc length is 200mm or 3T, and the larger is taken
4. The depth of each tank is 11% T≥h≥ 8% T, width ≤6mm, length ≥225mm
| ASME 1# | ASME BPVC-V (2010) Art.4 non-pipe weld | 19 | 150x120x19mm |
| ASME 2# | ASME BPVC-V (2010) Art.4 non-pipe weld | 38 | 150x150x38mm |
| ASME 3# | ASME BPVC-V (2010) Art.4 non-pipe weld | 75 | 150*250*75mm |
| ASME 4# | ASME BPVC-V (2010) Art.4 non-pipe weld | 127 | 150x400x127mm |
| ASME 5# | ASME BPVC-V (2010) Art.4 non-pipe weld | 178 | 150x550x178mm |
| ASME 6# | ASME BPVC-V (2010) Art.4 non-pipe weld | 230 | 150x700x230mm |
