उत्पाद विवरण:
|
| सामग्री मानक: | आईएसओ 10474-3.1.बी, जेआईएस जी 0415-3.1.बी | गहराई: | 150μM |
|---|---|---|---|
| चौड़ाई लक्ष्य मान: | 0.5μm,1.0μ और 1.5μ | परीक्षण मानक: | आईएसओ 3452-3:1998(ई), जेबी/टी6064 |
| प्रमुखता देना: | Multi-width penetrant testing specimen,DPI NDT inspection reference block,Non-destructive testing equipment with warranty |
||

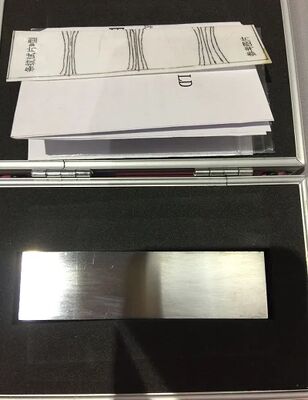

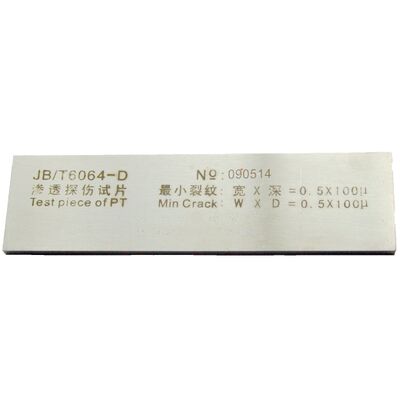

YM-D Multi-Width Penetrant Testing Specimen for DPI NDT Inspection Reference Block
All linear dimensions to the requirements of AS2083/2005, BS2704/1978/1983, where applicable. Heat treatment to the requirements of GB/T6394/2002. where practicable tolerances to (+/-0.1mm) unless otherwise stated. Treated to 920 degrees C for 30 minutes, water quenched, 650 degrees C for 3 hours, air cooled
| Material standard | according to ISO 10474-3.1.B,JIS G 0415-3.1.B |
| Width target value | 0.5µm,1.0μ and 1.5μ |
| Depth | 150µm |
| Test standard | ISO 3452-3:1998(E),JB/T6064 |
व्यक्ति से संपर्क करें: Ms. Shifen Yuan
दूरभाष: 8610 82921131,8618610328618
फैक्स: 86-10-82916893
