उत्पाद विवरण:
|
| साधन स्तर की लंबाई: | 0-100 सेमी (40 इंच) | स्नातक: | 1 सेमी |
|---|---|---|---|
| प्रमुखता देना: | portable paint film impact tester,coating impact tester for pass fail test,non destructive testing equipment with warranty |
||

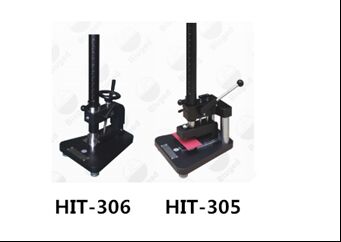

HIT-305 HIT-306 Portable Coating Paint Film Impact Tester for Pass/Fail & Classification Test
Impact test describes a method for evaluating the resistance of a dry film of paint, varnish or related product to cracking or peeling from a substrate when it is subjected to a deformation caused by a falling weight.
The coating under test is applied to suitable, thin normally metal panels. After the coating has cured, a standard weight is dropped on the each panel from a height that will cause deformation of the coating and the substrate. The test can be carried out with the coated side of the panel facing upwards i.e. towards the falling weight or downwards i.e. away from the weight .By gradually increasing the height from which the weight drops, the point at which failure occurs can be determined. Films generally fail by cracking, which is made more visible by the use of a magnifier.
The test can be carried out---either as a “pass/fail” test, the test being carried out from one drop height and with a specified mass, so as to test compliance with a particular specification.
---or as a classification test, to determine, by gradually increasing the drop height and/or the mass, the minimum mass and/or drop height for which the coating cracks or peels from its substrate.

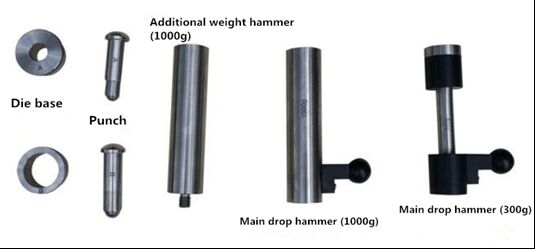

HUATEC Group offers many different types impact testers according to different standards. These impact testers consist of a solid base with a guide tube support, some different weights hammers falling weights and some different diameters punches.
Users can choose different size and weight hammer to simulate paint used different environments
Technical parameters
|
|
HIT-305 heavy-duty Impact Tester |
HIT-306 ISO Impact Tester |
|
Features |
1.Latest design make changing punch,weight and die become more easy and faster. 2.The aluminum oxid guide tube is produced by special technology, never fade and rust. 3.Special structure design make impact. groove won't deviate forever, no calibration. 4.Come with Calibration Certificate. |
1.Ring slot for height limitation, convenient for operator to adjust different impact depth. 2.The aluminum oxid guide tube is produced by special technology, never fade and rust. 3.Guide tube is produced by special mould, the gap with weight is controlled precisely. 4.Come with Calibration Certificate. |
|
Instrument scale length |
0-100cm (40inch) |
|
|
Graduation |
1cm |
|
|
Falling Weights |
1000g (2pcs),300g(1 pc) |
1000g (2 pcs),2 lb(2 pcs ) |
|
Punch Diameter |
Ф12.7mm(1/2 іnсh),Ф 15.9mm ( 5/8 іnсh) |
Ф20 mm,15.9mm ( 5/8 іnсh) |
|
Die inside Diameter |
Ф 16.Зmm,ФЗ1.75mm |
Ф 27mm,Ф 16.Зmm (41/64іnсh ) |
|
Standards |
ASTM D 2794, ASTM D 3029, ISO 6272.2 |
ASTM D 2794,ASTM D 3029,ISO 6272.1 |
