उत्पाद विवरण:
|
| आउटपुट वोल्टेज (केवी): | 100-200 केवी | फोकस स्पॉट (मिमी): | 2.0X2.0 |
|---|---|---|---|
| बीम कोण: | 40°+5° | अधिकतम प्रवेश (मिमी): | 2 पीसी |
| प्रमुखता देना: | portable x-ray ceramic tube,welding NDT x-ray tube,x-ray flaw detector tube |
||

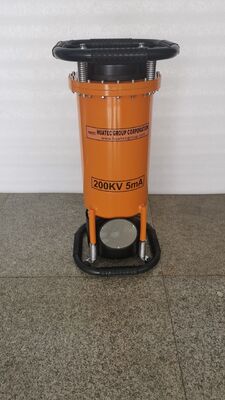

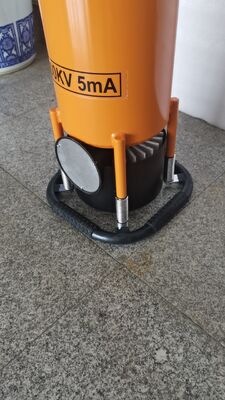

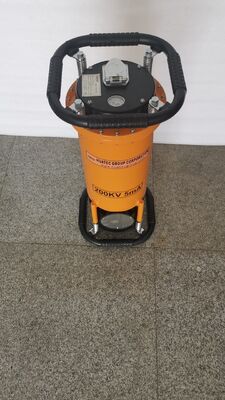

XXG-2005 Portable X-Ray Ceramic Tube for Welding NDT Instrument
XXG series are ceramic X-ray tube, both can be directional model and Panoramic, it is more durable than the glass tube: shake proof and long working life.
Feature:
● Checking the software and hardware itself after start the machine
● Excellent anti-jamming performance, which can adapt for field operation without power supply, because of the motor supports
● Can adjust exposure parameters with keys ( easy operation.)
● Has the function of Delay time opening HV. Convenient for operator keep away from dangerous field
● Can adjust high voltage slowly for protecting X-ray generator
● Automatically controlling according to 1:1 working and rest operating way, the longest continuous exposure period is 5 minutes.
● Including complete protecting system: over KV, low mA, over mA, over temperature and optical-sound alarming
● Convenient for repairing and maintenance
● Much more Substance for structure designing, much more convenient for local operation
● Time can be changed for±0.3 according to the power supply net to make the exposure more precise
Specification:
|
|
Output voltage (Kv) |
Input (KW) |
Focus spot (mm) |
Beam angle |
Max penetration (mm) |
Weight (KG) |
Dimensions (mm) |
||
|
Generator |
Controller |
Generator |
Controller |
||||||
|
XXG-2005 |
100-200 |
2.0 |
2.0X2.0 |
40°+5° |
29 |
22.5 |
11 |
280x280x650 |
350x290x160 |

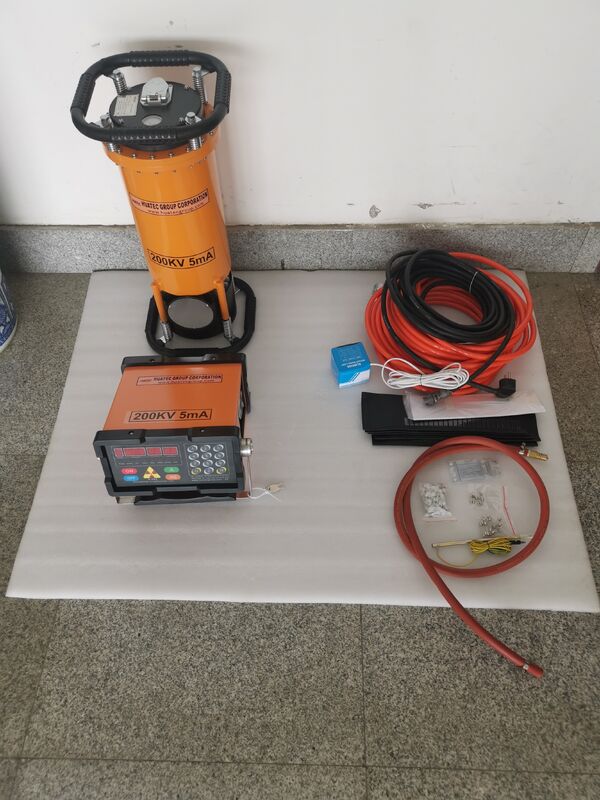

Standard Delivery
|
Directional glass X-ray tube |
1 Pcs |
|
|
Generator |
1 Set |
|
|
High voltage joins cable |
1 Pcs |
25 Meters |
|
Controller |
1 Set |
|
|
Power cable |
1 Pcs |
10 Meters |
|
Grounding cable |
1 Pcs |
5 Meters |
|
Accessories |
1 Set |
|
|
(Including: alarm lamp,1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc) |
||
