उत्पाद विवरण:
|
| एडाप्टर इनपुट वोल्टेज: | 85-264VAC/47-60Hz पावर: 200W | अधिकतम प्रकाश तीव्रता: | >100,000 सीडी/㎡ |
|---|---|---|---|
| फिल्म घनत्व: | >4.0डी निरीक्षण रिपोर्ट के अनुसार | सतह का तापमान: | <18° सेल्सियस (24 घंटे तक काम करना जारी रखें) |
| समान देखने का क्षेत्र: | 95% पूर्ण स्क्रीन | मापने की सीमा: | 0.00-5.00डी |
| दृश्य प्रदर्शन: | 4-बिट एलसीडी | नियंत्रण मोड: | मैनुअल + फ़ुट-स्विच |
| ठंडा करने की विधि: | मजबूर हवा ठंडा | ||
| प्रमुखता देना: | LED industrial film viewer,NDT inspection densitometer,built-in densitometer film viewer |
||

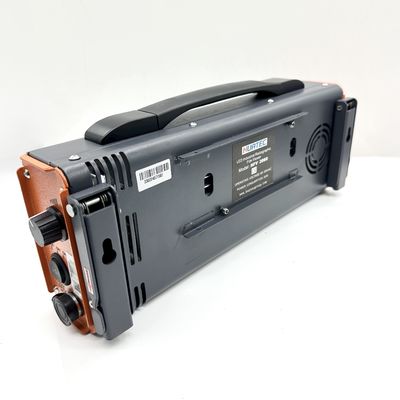

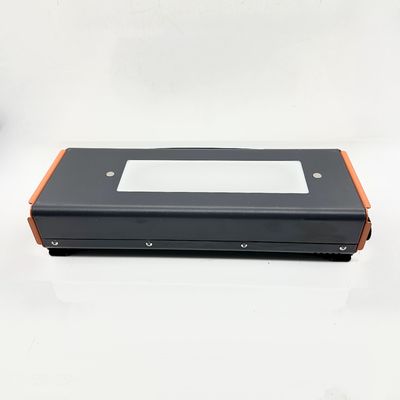

HFV-3010M LED Industrial Film Viewer with Built-in Densitometer for NDT Inspection
Features:
Maximum Light Intensity: >100,000cd/㎡
Easily View >4. 0 Density
Pure White LED Light
50,000 Hour Lamp Life
Low Power Consumption
Fan cooling
Foot Switch
Uniform Viewing Area: 98% Full Screen
Dimmer Control: 0% to 100% continuous
Surface temperature: <18°
Built-desktop stand
Design: Modern, Stylish and Simple
Power Requirements: 85-264VAC/47-60Hz
Specifications:
|
MODEL: |
HFV-3010M |
|
Pecifications: |
|
|
Measuring range: |
0.00-5.00D; |
|
Measurement accuracy: |
±0.05D; |
|
Calibration scope: |
arbitrary value; |
|
Visual display: |
4-bit LCD; |
|
Optical frequency sensor: |
American TAOS sensor; |
|
Probe dimension: |
diameter is 3mm; |
|
Power supply: |
built-in 3200mA lithium battery; |
|
Specifications: |
|
|
Adapter Input voltage: |
85-264VAC/47-60Hz |
|
Power: |
120W |
|
Maximum Light Intensity: |
＞100, 000Cd/㎡ |
|
Surface temperature: |
<18° Celsius (Continuance working 24 hours under) |
|
Uniform Viewing Area: |
95% Full Screen |
|
Dimmer Control: |
0% to 100% continuous |
|
Control mode: |
Manual + Foot-switch |
|
Cooling Method: |
Forced air cooling |
|
Dimensions: |
530mm*60mm*155mm (L*W*H) |
|
Substrate-mask window: |
220mm*80mm (L*W) |
|
Packing dimensions: |
60cm*24cm*18cm |
|
Weight: |
6.5. 0KG |
Package Contents:
LED viewer with densitometer HFV-3010M 1pc
Foot switch 1pc
AC power cord 1pc
Viewing mask 1pc
Magnetic film holder 2pcs
Magnetic ruler 1pc
User's manual 1pc
Calibration certificate 1pc
Trouble shooting Cause of the fault:
The power light is not on Elimination method: Check the power switch (8) to see if it is on the position of the foot switch, if is, should use in the foot switch mode. Check the lightness adjustment knob on the right-side control penal to see if it is on the minimum position, it is, should turn it to the proper lightness in the clockwise.
