उत्पाद विवरण:
|
| गुणवत्ता: | 510 फ़ाइल, 47 ~ 341 समूह (प्रभाव समय: 32 ~ 1) प्रति फ़ाइल | कठोरता का पैमाना: | एचएल, एचआरसी, एचआरबी, एचआरए, एचवी, एचबी, एचएस |
|---|---|---|---|
| तन्यता ताकत यूटीएस रेंज: | 374 ~ 2652 एमपीए | न्यूनतम. वर्कपीस की त्रिज्या (उत्तल/अवतल): | Rmin = 50 मिमी (विशेष समर्थन रिंग के साथ Rmin = 10 मिमी) |
| न्यूनतम. कठोर परतों की मोटाई: | 0.8मिमी | डेटा इंटरफ़ेस: | यूएसबी 2.0, ब्लूटूथ |
| प्रमुखता देना: | digital portable hardness tester,hardness tester with alarm function,multi impact hardness tester |
||

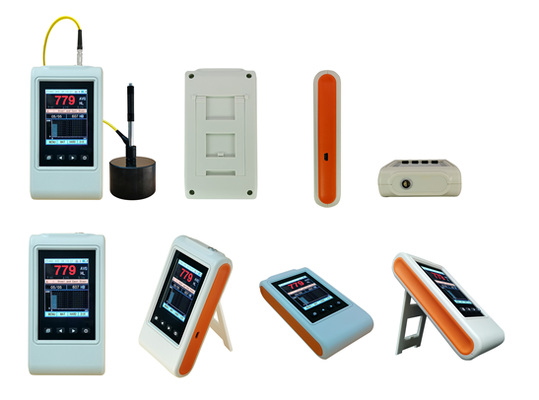

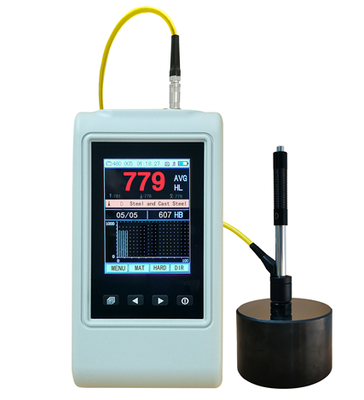

RHL-141 Digital Portable Hardness Tester with Multi Impact Devices & Alarm Function
Features:
-Advanced Leeb hardness model
-Automatic identification of Impact devices
-High performance rechargeable Li battery, intelligent charging management
-Optional Software to connect with PC,Support data query, storage, statistics and histogram display and other functions
-Mass storage,Bluetooth communication
-Upper and lower limit and sound alarm
-2.8” TFT,320*240 Pixel, showing all functions and parameters
-Direct display of hardness scales HRB, HRC, HV, HB, HS, HL
-For all metallic materials
-Test at any angle, even upside down
-Wide measuring range
-Six Impact Devices are available for special application
-Battery low indication and sound alarm
Technical Specification
|
Hardness scale |
HL, HRC, HRB, HRA, HV, HB, HS |
|
Memory |
510 file,47 ~ 341 groups (Impact times:32 ~ 1) per file |
|
Measuring range |
HLD(170 ~ 960), HRA(59 ~ 85), HRB(13 ~ 100), HRC(20 ~ 68), HB(19 ~ 651), HV(80 ~ 967), HS(30 ~ 100) |
|
Tensile strength U.T.S. range |
374 ~ 2652 MPa |
|
Accuracy |
±6HLD (760±30HLD) error of displayed value |
|
6HLD (760±30HLD) repeatability of displayed value |
|
|
Standard Impact Device |
D |
|
Data Interface |
USB 2.0, Bluetooth |
|
Optional Impact Devices |
DC / D+15 / G / C / DL |
|
Max. Workpiece Hardness |
996HV(For Impact Devices D / DC / DL / D+15 / C) |
|
|
646HB(For Impact Device G) |
|
Min. Radius of Workpiece (convex/concave) |
Rmin = 50mm (with special support ring Rmin = 10mm ) |
|
Min. Workpiece weight |
2 ~ 5kg on stable support |
|
0.05 ~ 2kg with compact coupling |
|
|
Min. Workpiece thickness |
5mm (Impact Devices D/DC/DL/D+15) |
|
1mm (Impact Device C) |
|
|
10mm (Impact Device G) |
|
|
Min. thickness of hardened layers |
0.8mm |
|
Power |
Rechargeable Li Battery, 3.7V, Li(2000mAh) |
|
Continuous Working time |
About 30h |
|
Charging time |
4 ~ 5 hours |
|
Operating temperature |
0 ~ 40ºC |
|
Humidity |
≤ 90% |
|
Overall dimensions |
212 × 80 × 35 mm |
|
Weight |
320g |
|
Standard delivery |
Main unit RHL-141 Impact Device type D Test block HLD Charger Brush Table support for main unit Connecting cable HUATEC calibration certificate Instruction manual Dataview Software |
|
Optional accessories |
Optional impact devices Optional support rings Other test blocks Micro Printer |
