उत्पाद विवरण:
|
| डिटेक्टर रेंज: | 9वी——300µm;67.5V—500µm;90V——500µm | संवेदनशीलता: | 9V——90KΩ+5% ;67.5V—125KΩ+5% ;90V——400KΩ+5% |
|---|---|---|---|
| वोल्टेज की सटीकता: | +5% | बैटरी: | ली-पोल रिचार्जेबल बैटरी 11.1V/1100mA |
| शक्ति: | गोल | वोल्टेज संकेत: | प्रत्येक वोल्टेज के लिए एलईडी संकेत |
| बैटरी चार्ज हो रहा है: | 12VDC चार्जर | ||
| प्रमुखता देना: | portable pinhole detector for insulation,multi-voltage leak testing detector,insulating coating pinhole detector |
||

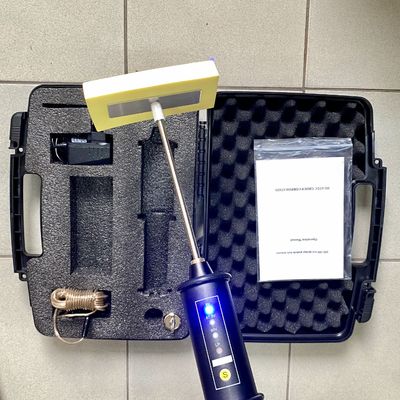

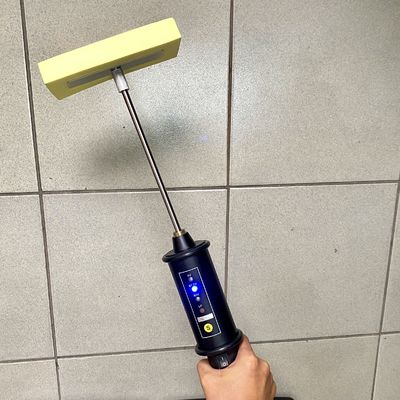

Utilizes the wet sponge technique and has been designed to set a new standard for wet sponge detectors - a high quality, low voltage detector with similar accessories to a high voltage spark tester.
| Attribute | Value |
|---|---|
| Detector range | 9V ——300µm; 67.5V—500µm; 90V——500µm |
| Sensitivity | 9V——90KΩ+5%; 67.5V—125KΩ+5%; 90V——400KΩ+5% |
| Accuracy of voltage | +5% |
| Battery | Li-pol rechargeable battery 11.1V/1100mA |
| Power | ≤0.5W |
| Weight main unit | 500g |
| Size | 290×53×53mm |
| Voltage indication | LED indication for each voltage |
| Battery charging | 12VDC charger |
| Sponge size | 170×70×30mm |
| Detecting rod length | 195mm |
| Earth wire length | 4m |
