उत्पाद विवरण:
|
| टेस्ट वोल्टेज रेंज: | 1केवी～50केवी | मोटाई रेंज: | 0.35 मिमी |
|---|---|---|---|
| संकल्प: | 0.1 केवी | वोल्टेज सटीकता: | ±(0.1kv+3%) |
| अधिकतम लीक रिकॉर्ड: | 999 अधिकतम | प्रदर्शन: | 128*64 एलईडी स्क्रीन बैकलाइट के साथ |
| शक्ति: | ≤6w | एडाप्टर का वोल्टेज: | इनपुट AC 100-240V आउटपुट 12.6V 1A |
| प्रमुखता देना: | portable holiday detector for metal coating,pulse voltage leak detector,HD-105A coating defect detector |
||

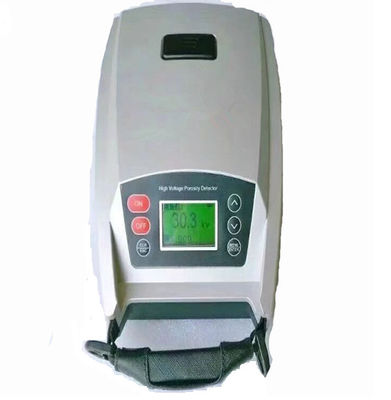

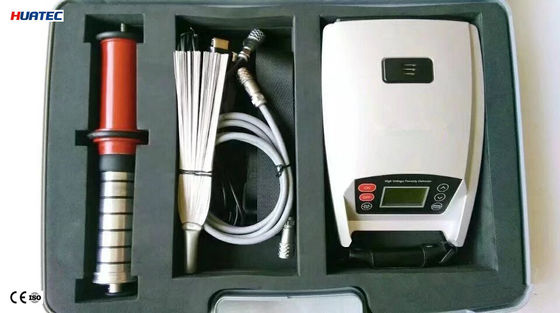

HD-105A Portable Pulse Voltage Holiday Detector for Metal Coating Leak Detection
1.1 What is HD-105A
HD-105A holiday detector is intelligence pulsed high voltage protecting coating quality detector. It install anti-jamming intelligent chip, anti-jamming LED screen and brand new digital control circuit to make a accurately high voltage output ±(0.1KV+3%reading).It can adjust its value of voltage according to the thickness of protecting coating. HD-105A use lithium battery for power source, it is also can be used in field.
1.2 Theory
When high voltage probe brushed pass non conductive coating, If the coating is too thin or metal has leakage or pinhole, the air gap will be punctured and produce spark discharge when pulse high voltage. At same time, detector will record leak number.
1.3 What it can be used on?
The equipment design of HD-105A is advanced, stable and reliable, which can be widely used in chemical industry, oil, rubber and enamel, so it is an essential tool used to detect metal anti-corrosion coating quality.
Parameter
| Test voltage range | 1KV～50KV |
| Thickness range | 0.1～35mm |
| High voltage output | Pulse |
| Voltage display | 3 digit |
| Resolution | 0.1KV |
| Voltage precision | ±(0.1kv+3%) |
| Max leak record | 999 maximum |
| Way of alarming | Headphone buzzer and light |
| Shutdown | Auto and Manual |
| Display | 128*64 LED screen with backlight |
| Power | ≤6W |
| Size | 240mm*165mm*85mm |
| Battery | 12V 4400mA |
| Working time | ≥12 hours(Max voltage) |
| Charging time | ≈4.5 hours |
| Voltage of adapter | Input AC 100-240V Output 12.6V 1A |
| Probe wire | Close to 1.5m |
| Earth lead wire | 2*5m black/black |
| Fuse | 1A |
