उत्पाद विवरण:
|
| प्रदर्शन: | त्वरण, वेग या विस्थापन के लिए 3 1/2 अंक का डिस्प्ले | त्वरण (@30 मी/से2 पीके): | 40 हर्ट्ज से 320 हर्ट्ज + 0.3 डीबी + 1 अंक; 20 हर्ट्ज से 1280 हर्ट्ज + 0.5 डीबी + 1 अंक |
|---|---|---|---|
| वेग (@25मिमी/सेकंड प्रति व्यक्ति): | 40Hz से 320Hz +0.5dB +1 अंक | विस्थापन (@50μm pk-pk): | 40Hz से 320Hz + 0.5dB + 1 अंक |
| तापमान: ऑपरेशन: | 0oC से 50 oC | भंडारण: | -20 oC से 70 oC |
| शक्ति: | 220Vac (वैकल्पिक 110Vac) | ||
| प्रमुखता देना: | vibration calibrator 1-1280Hz,vibration meter calibration tool,accelerometer calibrator with warranty |
||

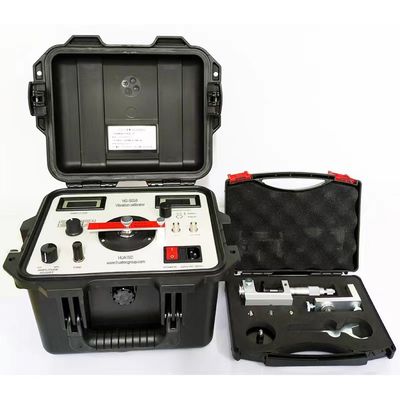

HG-5026 Vibration Calibrator 1~1280Hz for Vibration Meter & Accelerometer Calibration
Can be used to calibrate vibration accelerometer, velocity and proximity transducer and also a vibration measuring instruments. Standard sine signals at frequency 10, 20, 40, 80, 160, 320, 640 and 1280 Hz can be generated from the calibrator. It also has a socket for input from an external signal generator for any vibration frequency and even sweep signal. The amplitude of the, acceleration, velocity and displacement, can be defined through potentiometers and shown on digital displays. Either horizontal or vertical vibration can be generated.
HG-5020i combines sine signal generator, power amplifier, standard transducer and a shaker in one and features a small volume, high accuracy and easy operation. It can be used either in laboratory or on site.
Maximum vibration amplitude and maximum load
|
Wt Freq |
<100g | <250g | <650g | ||||||
| a(m/S2) | v(mm/S) | d(μm) | a(m/S2) | v(mm/S) | d(μm) | a(m/S2) | v(mm/S) | d(μm) | |
| 10Hz | 2.5 | 28 | 1300 | 3.5 | 40 | 1800 | 4 | 45 | 2000 |
| 20Hz | 15 | 85 | 1900 | 10 | 60 | 1300 | 5 | 28 | 640 |
| 40Hz | 60 | 170 | 2000 | 35 | 100 | 1100 | 12 | 35 | 380 |
| 80Hz | 100 | 141 | 800 | 40 | 60 | 320 | 14 | 20 | 110 |
| 160Hz | 75 | 53 | 150 | 35 | 25 | 70 | 12 | 8.5 | 24 |
| 320Hz | 50 | 18 | 25 | 30 | 10 | 15 | 10 | 3.5 | 5 |
| 640Hz | 30 | 5 | 3 | 20 | 3.5 | 2 | 6 | 1 | * |
| 1280Hz | 23 | 2 | * | 10 | 0.9 | * | 5 | 0.4 | * |
Acceleration(@10m/s2 pk) 40Hz to 320Hz + 0.3dB + 1digit
20Hz to 1280Hz + 0.5dB +1digit
Velocity ( @20mm/sec pk) 40Hz to 320Hz +0.5dB +1digit
Displacement(@50μm pk-pk) 40Hz to 320Hz + 0.5dB + 1digit

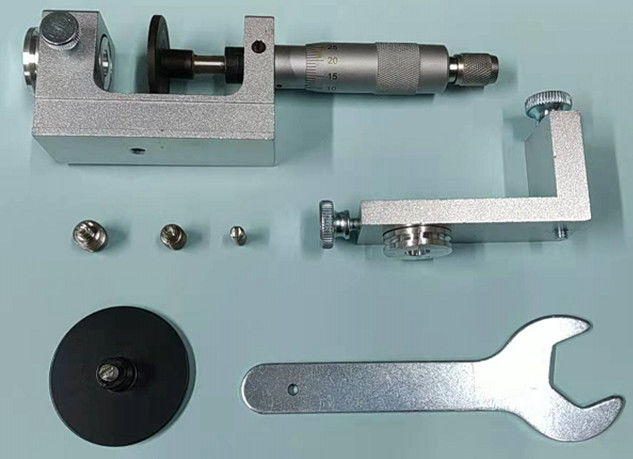

Proximity probe linearity linearity calibration kits
Prode: 5mm and 8mm probes Range: 0~2.0mm
Display: 3 1/2 digit display for velocity and frequency
Size: 300 x 250 x 210(mm) Net Weight: 6 kg
Temperature: Operation: 0oC to 50 oC Storage: -20 oC to 70 oC
Power: 220Vac (optional 110Vac)
