उत्पाद विवरण:
|
| मापने की सीमा: | 0.65～500मिमी (45＃स्टील) | ध्वनि वेग -सीमा: | 1000 ~ 9990 मी/से |
|---|---|---|---|
| शुद्धता: | 0.01 एम एम | गलती: | 1％ * मोटाई मान±0.05मिमी |
| जांच आवृत्ति: | 2 मेगाहर्ट्ज-10 मेगाहर्ट्ज | परिचालन लागत वातावरण: | -10℃~60℃ के बीच तापमान सापेक्ष आर्द्रता <90% |
| प्रमुखता देना: | ultrasonic thickness gauge 0.65-500mm range,non-destructive testing thickness gauge,TG-3400 ultrasonic thickness meter |
||

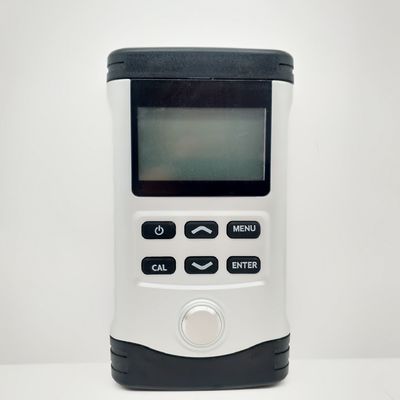

TG-3400 Big Range 0.65～500mm Ultrasonic Thickness Gauge
Application: used for measuring the thickness of hard materials, such as: steel, stainless steel,aluminum, copper, chrome and other metal materials, as well as plastics, rubber, ceramics, glass and other nonmetals. The gauges are widely used in petroleum, chemical industry, electric power, boiler,metallurgy, shipbuilding, aviation, aerospace and other fields.
Specifications
| Measuring Range | 0.65～500mm (45＃Steel) |
| Sound Velocity Range | 1000～9990m/s |
| Precision | 0.01mm |
| Error | 1％ * Thickness Value±0.05mm |
| Operating Environment | Temperature Between -10℃～60℃Relative Humidity < 90％ |
| Dimension | 175*70*25mm |
| Probe Frequency | 2MHz-10MHz |
| Display | Auto Backlight |

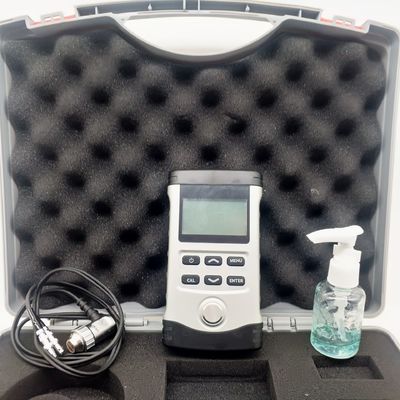

Standard accessories
1,TG-3400 Unit 1 Set
2,Probe (one forφ6 and one forφ10) 2
3,Couplant 1 Bottle
4,Steel File 1
5,Step Block 1
6,1.5V Battery 2
7,Instruction Manual 1
8,Guarantee Card and Certificate of Conformity 1
9,Carrying Case 1
Optional accessories:
1,Print and Connections for Communication and Printing 1
2,Microcomputer Communication Software 1
3,Tool Kit for Measurement 1
Reference Sound Velocity of Common Materials:
|
Material |
Sound Velocity(M/S) |
Material |
Sound Velocity(M/S) |
|
Aluminium |
6400 |
Copper |
4700 |
|
Zinc |
4170 |
Stainless Steel |
5790 |
|
Silver |
3600 |
Brass |
4640 |
|
Gold |
3240 |
Tin |
3230 |
|
Steel & Iron |
5900 |
Organic Glass |
2730 |
Note: The thickness of many other materials can also be measured.
