उत्पाद विवरण:
|
| परीक्षण सीमा (मेट्रिक): | ऐक्सेस: 0.1 ~ 400.0m/s2(पीक) वेलो: 0.1 ~ 400.0mm/s(RMS) डिस्प: 0.001 ~ 4.000mm(पीक-पीक) | आवृत्ति: | त्वरण: 10Hz ~ 1KHz, 1K Hz ~ 10KHz वेग: 10Hz ~ 1KHz विस्थापन: 10Hz ~ 500Hz |
|---|---|---|---|
| आंकड़ा स्मृति: | 150 ×100 गश्ती डेटा के टुकड़े 30 ~ 480 रिकॉर्ड डेटा के टुकड़े | अस्थायी: | 0℃ ~ 40℃ |
| सहनशीलता: | ± 5% | प्रदर्शन: | TFT: 2.8 ”, 320 × 240 पिक्सेल RGB के साथ |
| बैटरी: | रिचार्जेबल ली बैटरी, 2000mAh | नमी: | ≤80％RH |
| प्रमुखता देना: | portable piezoelectric acceleration transducer,vibration data collector transducer,non-destructive testing vibration sensor |
||

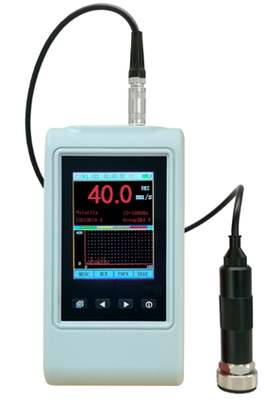

HG-6390 Portable Piezoelectric Acceleration Transducer Vibration Data Collector
HG-6390 uses piezoelectric acceleration transducer to convert vibration signal into electric signal. Then by analyzing input signal, results including RMS of velocity values, peak-peak value of displacement, peak values of acceleration or real-time spectral charts are displayed or printed out. It can not only measure the three parameters, but also records real time vibration curve.
The vibration meter is designed to test conventional vibration, especially the vibration test in rotating and reciprocating machines. It can be used not only to test the acceleration, velocity, and displacement of vibration as well as rev (or inherent frequency), but also perform simple failure diagnosis.
Built in iso10816 fault diagnosis standard, which can automatically diagnose the fault of the tested equipment.
The technical specifications of HG-6390 comply with the requirements of GB 13823.3. HG-6390 is widely used in machinery, power, metallurgy, automobile and other industrial fields.
Configuration:
|
Standard configuration |
NO. |
Item |
Quantity |
|
1 |
Main unit |
1 |
|
|
2 |
Power Adapters:output:5V/1000mA |
1 |
|
|
3 |
Piezoelectric sensors |
1 |
|
|
4 |
Magnetic seat |
1 |
|
|
5 |
Manual |
1 |
|
|
6 |
Package case |
1 |
|
|
Optional configuration |
3 |
Probe |
1 |
|
4 |
Communication cable |
1 |
Specifications:
|
Testing range (Metric) |
Acce: 0.1 ~ 400.0m/s2(peak) Velo: 0.1 ~ 400.0mm/s(RMS) Disp: 0.001 ~ 4.000mm(peak-peak) |
|
Freq range |
Acceleration: 10Hz ~ 1KHz, 1K Hz ~ 10KHz Velocity: 10Hz ~ 1KHz Displacement: 10Hz ~ 500Hz |
|
Data memory |
150 ×100 pieces of patrol data 30 ~ 480 pieces of record data |
|
Temp |
0℃ ~ 40℃ |
|
Tolerance |
±5% |
|
Humidity |
≤80％RH |
|
Display |
TFT:2.8”,320×240 pixels with RGB |
|
Data interface |
USB(RS232/RS485),Bluetooth |
|
Overall dimensions |
140×76×28 |
|
Printer |
Wireless Bluetooth printer(Optional) |
|
Weight |
180g |
|
Battery |
Rechargeable Li battery,2000mAh |
|
Continuous working time |
Continuous operation for about 20 hours, Standby for 80 hours |
