उत्पाद विवरण:
|
| रूपांतरण स्केल: | सतही रॉकवेल, ब्रिनेल, विकर्स | निवास का समय: | 0-99s |
|---|---|---|---|
| रॉकवेल का कुल भार: | 60kgf(588N) 100kgf(980N) 150kgf(1471N) | लोड मान त्रुटि: | 0.5% से कम |
| कठोरता माप की सटीकता: | 0.1एचआर | नमूने की अधिकतम ऊंचाई: | 200 मिमी |
| इंडेंटर की बाहरी दीवार से दूरी: | 160 मिमी | ||
| प्रमुखता देना: | Rockwell hardness tester with touch screen,high precision hardness tester sensor,non destructive testing equipment HR-150DT |
||

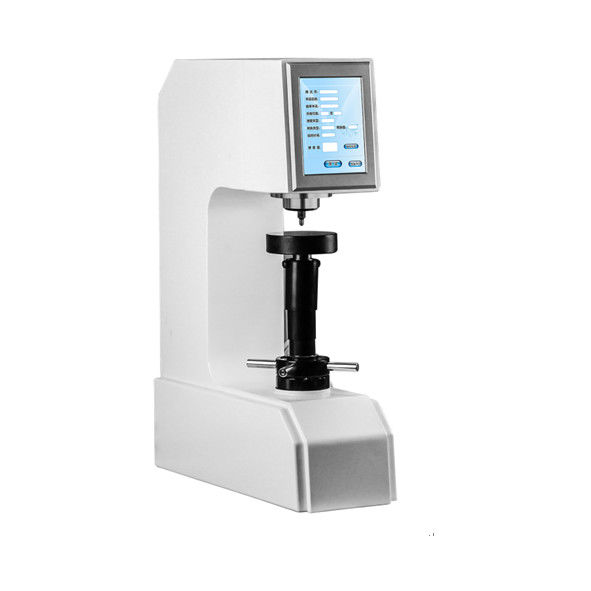

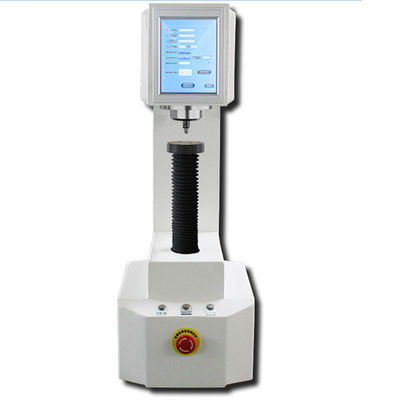

HR-150DT High precision sensor Rockwell Hardness Tester with Touch screen
Product Features:
Application Fields:
Industrial production, Inspection of product quality on processing technology. Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, hardness and thermal spray coating.
Technical Specifications:
|
Model |
HR-150DT |
|
Initial load of Rockwell |
10kgf(98.07N) |
|
Total load of Rockwell |
60kgf(588N) 100kgf(980N) 150kgf(1471N) |
|
Rockwell Scale |
HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK, HRL,HRM,HRR,HRP,HRS,HRV |
|
Hardness testing range |
HRA:20-88,HRB:20-100 ,HRC:20-70 ,HRD:40-77 ,HRE:70-100 ,HRF:60-100 ,HRG:30-94,HRH:80-100,HRK:40-100,HRL:100-120 HRM:85-115, HRR:114-125 |
|
Dwell time |
0-99s |
|
Resolution of hardness value |
0.1HR |
|
Load value error |
＜0.5% |
|
Hardness reading |
LCD display |
|
Screen size |
8 inch |
|
Data Storage |
Can store 60 kinds of test results, built-in printer, RS-232 interface, optional USB flash disk automatically stored |
|
Conversion Scale |
Superficial Rockwell, Brinell, Vickers |
|
Carried Standard |
BSEN 6508, ISO 6508, ASTM E18, GB/T230 |
|
Max Height of Specimen |
200mm |
|
Distance of Indenter to outer wall |
160mm |
|
Overall Dimension (mm) |
560×200×800mm |
|
Net weight |
70kg |
|
Power supply |
AC220+5%,50～60Hz |
Standard Accessories:
|
Name |
Quantity |
Name |
Quantity |
|
Diamond Rockwell Indenter |
1 |
1.5875mm Ball Indenter |
1 |
|
Hardness block (HRC High Low 2, HRB 1) |
3 |
Large, Medium, “V” shaped Testing Table |
1 each |
|
Weights(A,B,C) |
1 each |
Plastic Dustproof cover |
1 |
|
Power line |
1 |
2A fuse |
1 |
|
Operation Manual |
1 |
Product certificate |
1 |
