उत्पाद विवरण:
|
| नाम: | विद्युत चुम्बकीय अल्ट्रासोनिक मोटाई गेज | माप की सटीकता: | ± 0.01 मिमी |
|---|---|---|---|
| प्रयोग: | विद्युत चुम्बकीय अल्ट्रासोनिक मोटाई गेज | कुंजी शब्द: | विद्युत चुम्बकीय अल्ट्रासोनिक मोटाई गेज |
| प्रमुखता देना: | electromagnetic ultrasonic thickness gauge,high accuracy thickness gauge,non-destructive testing thickness meter |
||
| Attribute | Value |
|---|---|
| Name | Electromagnetic ultrasonic thickness gauge |
| Measurement accuracy | ±0.01mm |

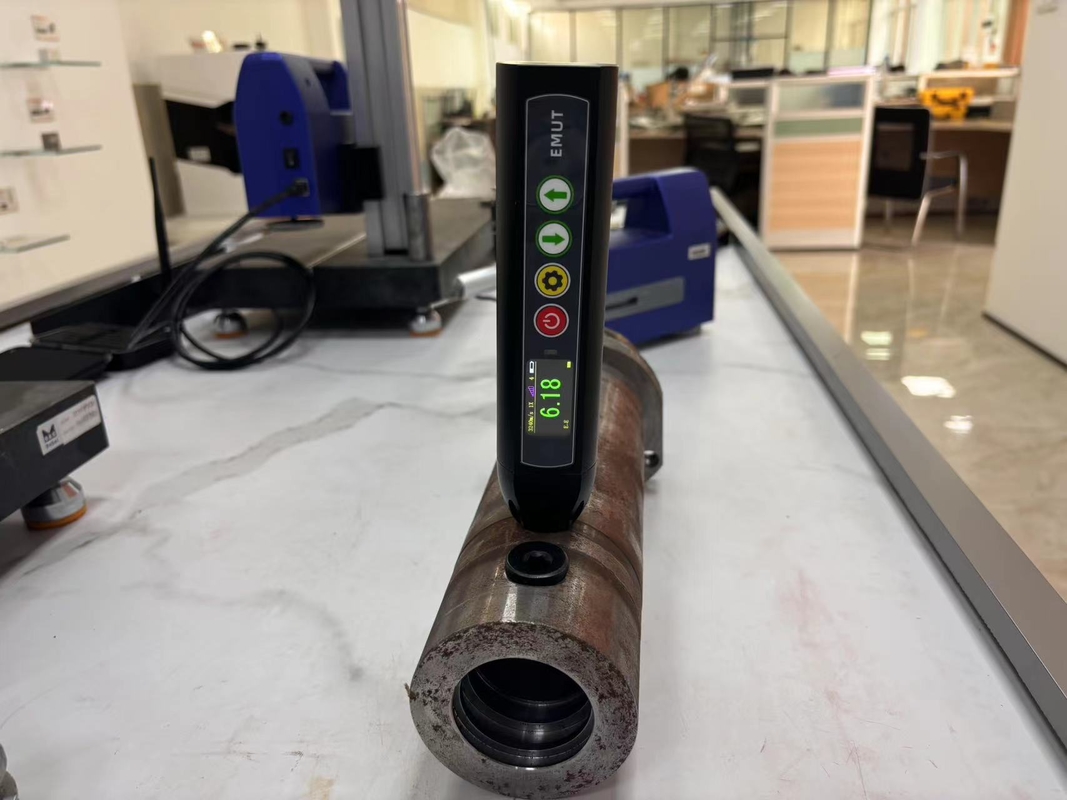

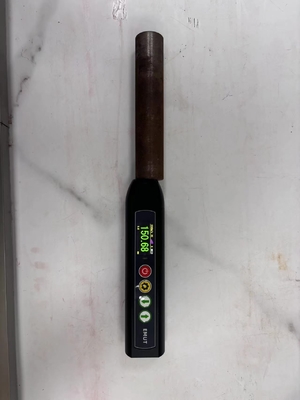

The TG-14+ Electromagnetic Ultrasonic Thickness Gauge is an ultra-small, non-contact thickness measuring instrument that requires no acoustic coupler and can measure the thickness of metal or magnetic conductive materials.
| Sampling | 80MSPS |
|---|---|
| Bandwidth | 2.5MHz～6MHz |
| Transmit | ±600V_400Hz_125ns |
| Gain | Automatic 0 ~ 96dB, step 1dB |
| Measurement accuracy | ±0.01mm |
| Sound velocity range | 400～9999 m/s |
| Effective range | 0.75～1280 mm |
| Average grade | L,M,H Third gear adjustable |
| Lifting distance | 5mm(aluminum), 4mm(carbon steel), 3mm(stainless steel) |
| Measuring range (carbon steel) | 1X:160mm 2X:320mm 3X:640mm 4X:1280mm |
| Measuring materials | Aluminum, copper, iron, carbon steel, cast steel, alloy steel, stainless steel, titanium alloy and other metal materials |
| Measurement mode | Single echo (I-E), Double Echo (E-E) |
| Search pattern | Frontier - frontier, crest - crest, crest - frontier |
| Auxiliary functions | Auto freeze, auto gain, auto sleep, A-scan waveform display, Wi-Fi connected phone |
| Correction functions | Gate height adjustment, delay blanking adjustment, manual gain adjustment, sound velocity calibration, high temperature compensation |
| Communication | RS-485 or USB2.0 |
| Recharger | 5V2A, Standard Type-C interface |
| Display screen | 1.47 INCH 320× 172 IPS_LCD |
| Body size | 178.4 mm× 42 mm× 32 mm |
| Battery life | 3.7V 3400mAh lithium battery for 6 hours |
| Weight | A metal shell: 358g B injection shell: 255g C injection + quick disassembly: 289g |
| Item | Quantity | Description |
|---|---|---|
| Host machine | 1 | |
| Normal temperature probe | 1 | 4MHz, 42mm×32mm |
| Charging cable | 1 | |
| Charging plug | 1 | |
| Manual | 1 | |
| Iron base test block | 1 | |
| Aluminum base test block | 1 | |
| Packing box | 1 |
| Item | Quantity | Description |
|---|---|---|
| High temperature probe | 1 | 4MHz, Φ33mm×40mm |
| Small diameter normal temperature probe | 1 | 4MHz, Φ13mm×36mm |
| Large diameter normal temperature probe | 1 | 4MHz, Φ40mm×60mm |
| Mobile phone | 1 | Supports Android and HarmonyOS |
| Pad | 1 | Supports Android, HarmonyOS Pad |
| Watch | 1 | Supports Android and HarmonyOS |
| Upper computer software | 1 | APP software |
