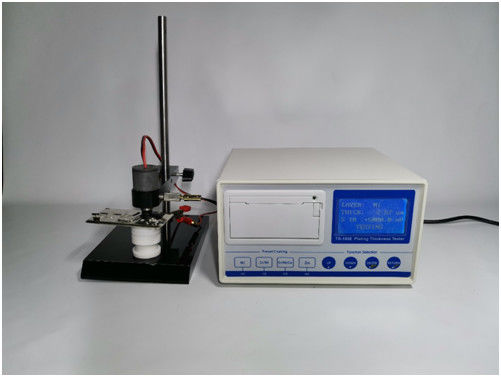

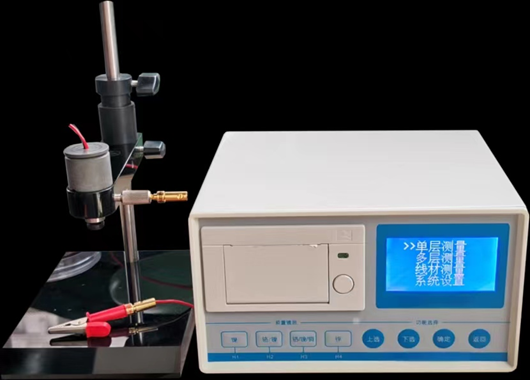

TG-100E Coulometric Electrolytic Coating Thickness Tester Built-in Printer Multi-Layer Gold Nickel Chrome Zinc Plating Thickness Measuring Instrument

TG-100E Coulometric Electrolytic Coating Thickness Tester Built-in Printer Multi-Layer Gold Nickel Chrome Zinc Plating Thickness Measuring Instrument

FEATURES

• Permits measurement of thickness of single layer of electroplating metals
• The preset standard plating types are: decorative chromium, hard chromium, nickel, copper (copper on iron or non-metallic substrate), zinc, tin, silver, and gold 8 plating types. If you want to test other plating types, you must modify the preset plating types. For example, if you need to test electroless nickel (customers may not test silver), you can change silver to electroless nickel.
• Permits measurement of thickness of individual layers of multi-layer electroplated coatings
• Permits measurement of thickness of electroplated coatings on non-conducting materials such as plastics
• Digital display permits easy and accurate direct readings of measured thickness in the decimal system
• Equipped with a miniature printer, which can automatically print plating species, thickness and test time
• Potential difference cannot be measured
• Designed for use in accordance with the standard testing procedures conforming to the ISO Specification

SPECIFICATIONS

Detailed list:

TG-100E tester body 1

Potential testing stand 1

The signal cable for potential transducer 1

Electrolysis cell 1

Gasket 1

Electrolysis solutions A2, A4, A5, A8 1

Rubber 1

Portioning bottle 2

Nipper 1

Instruction, guarantee card 1
