उत्पाद विवरण:
|
| यूवी (लाइट) -फ्लक्स इंडोर तापमान 25 ℃: | 10000uW/सेमी² | 380 मिमी की गहराई पर विकिरण क्षेत्र: (≥1000uw/cm²): | व्यास में लगभग 200 मिमी |
|---|---|---|---|
| फ्लक्स त्रुटि: | 0-40℃ ±10% | बिजली की आपूर्ति: | एसी 100- 240 वी, 50/60 हर्ट्ज |
| वेवलेंथ: | कमरे का तापमान 25℃, 365nm±3nm (UVA) | शक्ति: | यूवी एलईडी-9वीए लाइट-3वीए |
| प्रकाश वितरण विशेषताओं: | केंद्रीय प्रकाश वितरण | ||
| प्रमुखता देना: | 365nm UV LED inspection lamp,handheld UV black light,magnetic particle NDT lamp |
||

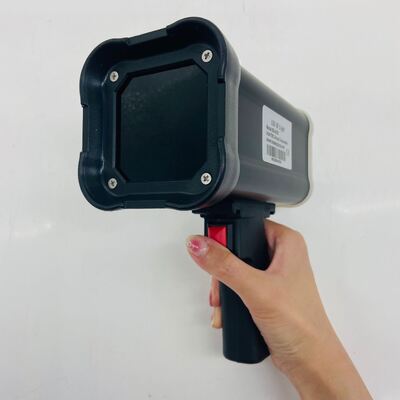

DG-8K Handheld 365nm UV LED Inspection Lamp Dual UV White Light 10000uW/cm² Magnetic Particle NDT Black Light
Features
*Energy saving is only 9VA of power consumption.
*The average lifespan of a light source of 30000H.
*Original imported light source UVLED.
*The UV-B content is 0.
*3-4 hours of battery life.

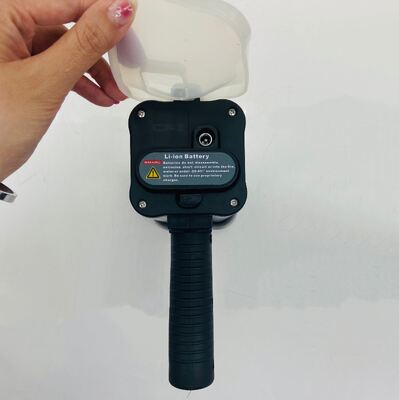

*Quick battery replacement
*Weight containing less than 500g of batteries.
*There is no external wiring.
*Quartz and optical glass module, non PMMA material, excellent weather resistance.
*Continuous working with an external surface temperature rise of less than 5K (5 ℃).
*No preheating required, instantly reaching 100% power.
*Equipped with dual functions of UV and white light, with one hand switching. 3pcs UV lamps, 1pc white light lamp
|
Project |
Parameter / method |
|
Form |
Handheld |
|
UV(Light)-FLUX 25 ℃ Room temperature ,Calibration at 380mm |
UV -FLUX 10000uW/cm² Light-MAX1500LUX |
|
Coverage area calibration at 380mm |
Approximately 200mm in diameter |
|
FLUX error |
0-40℃ ±10％ |
|
Light distribution characteristics |
Center light distribution |
|
power supply |
AC100-240V 50/60Hz |
|
power |
UV LED-9VA Light-3VA |
|
wavelength |
Room temperature 25℃ 365nm±3nm(UVA) |
|
Dimensions |
137mm(W)*73mm(D)*175mm(H) |
|
weight |
498g |
|
battery capacity |
2200mA/H 12.6V |
|
Charging time |
3-4H |
|
Battery life (cumulative time) |
UV LED 3-4H or Light 7H |
