उत्पाद विवरण:
|
| प्रदर्शन: | ईआई बैकलाइट और समायोज्य कंट्रास्ट के साथ 42×57 मिमी एलसीडी आकार, फ़ॉन्ट आकार 13.75 मिमी (0.54 इंच) त | ध्वनि वेग: | 1000 से 9999 मीटर/सेकंड (0.0394 - 0.3936 इंच/एमएस) |
|---|---|---|---|
| संकल्प: | मिमी: 0.1 / 0.01 / 0.001 इंच: 0.01 / 0.001 / 0.0001 | शुद्धता: | ±0.005 मिमी या 0.0002 इंच (यदि मोटाई <3 मिमी) ±0.05 मिमी या 0.002 इंच (यदि मोटाई <20 मिमी) |
| मेमोरी क्षमता: | 500 मोटाई मानों को संग्रहीत करने के लिए 5 सरणियों को विभाजित किया गया है | ताज़ा आवृत्ति मापना: | सामान्य मोड में 4Hz, 25Hz तक |
| प्रमुखता देना: | Portable ultrasonic wall thickness meter,Industrial thickness measuring instrument,Ultrasonic thickness meter with alarm |
||

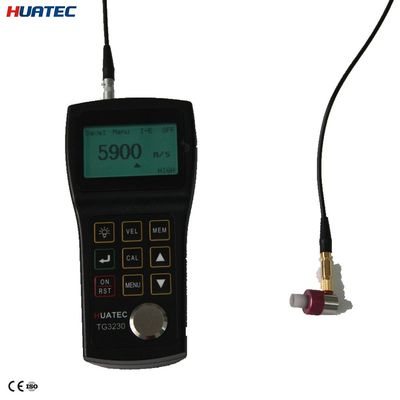

TG-3230 Portable Ultrasonic Wall Thickness Meter 0.15mm Minimum Measurement High Low Limit Alarm Industrial Thickness Measuring Instrument
FEATURES
TECHNICAL SPECIFICATIONS
|
Measuring Range (for steel) |
Interface-Echo Mode: (I-E or Standard Mode) |
1.50mm – 20.0mm (0.059in – 0.787 in) |
|
Echo-Echo Mode: (E-E or High Precision Mode) |
0.3mm – 10.0mm (0.012in – 0.394in) |
|
|
Measuring Accuracy |
±0.005mm or 0.0002 inch (if thickness < 3mm) |
|
|
±0.05mm or 0.002 inch (if thickness < 20mm) |
||
|
Display Resolution |
mm : 0.1 / 0.01 / 0.001 |
|
|
inch : 0.01 / 0.001 / 0.0001 |
||
|
Sound Velocity Range |
1000 to 9999 m/sec (0.0394 – 0.3936 inch/ms) |
|
|
Measuring Refresh Frequency |
4Hz in normal mode, up to 25Hz |
|
|
Memory Capacity |
5 arrays are divided to store 500 thickness values |
|
|
Multiple Calibrations |
One point or Two Point |
|
|
Display LCD |
42×57mm LCD size with EI backlight and adjustable contrast, font size up to 13.75mm (0.54 inch) |
|
|
Power Source |
2 pcs. 1.5v AA size batteries |
|
|
Communication Port |
USB port or Serial RS 232 port (Optional) |
|
|
Continuous working period |
About 200 hours (with backlight off) |
|
|
Power off |
Auto power off if idle for 4 minutes |
|
|
Operating Temperature |
-10 °C to +50 °C |
|
|
Unit Size |
2.9 W x 5.9 H x 1.26 D inches (73 W x 149 H x 32 D mm). |
|
|
Weight |
200g |
|

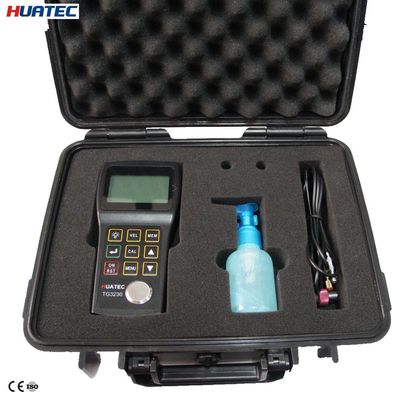

STANDARD DELIVERY
OPTIONAL ACCESSORIES
1. Single element probe
2. Probe cable
3. Wedge
4. Rubber sheath
5. Communication Option
6. Calibration step block
