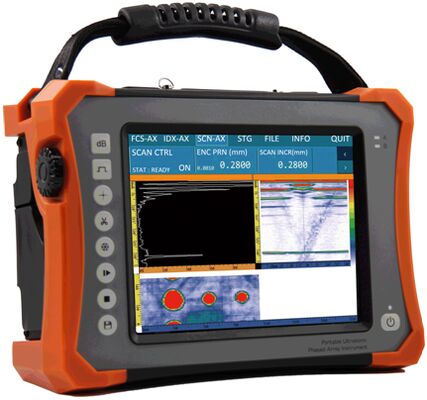

HPA-500 Portable Phased Array Ultrasonic Flaw Detector with 11-inch TFT Display 160-pin PA Port and 16G RAM

The HPA-500 is a portable 64-channel phased array ultrasonic flaw detector developed by HUATEC. Featuring waterproof and oil-proof construction, fan-free cooling, and touch screen operation, this instrument offers superior performance with high cost-performance ratio.

• File & Entry Management System for flexible bridging between settings, calibration, and inspection
• Modular Configuration: L-Scan, S-Scan, L-C-Scan, S-C-Scan, Butt-Weld, CrankShaft, Pipeline, TOFD, UT (Conventional)
• 3D Simulation Model
• Image analysis capabilities
• Natural Structure of Heat Dissipation
• Dynamic Depth Focusing (DDF)
• Smooth Filtering
• Touch Screen interface
• ACG Calibration
• TCG Calibration

• Common or special welded seams in steel structures, utility boilers, pressure vessels, pipelines, nuclear power infrastructures, watercraft, oil tanks, ethylene tubes
• Railway welded seams, locomotive wheel sets and axles
• Aluminum alloy FSW butts and bonding of composites in aerospace industry
• Blades and bolts in power industry
• Limited space inspection scenarios and conventional UT applications

• HPA-500 Unit (1pc)
• PAUT Probe (1pc)
• PAUT Probe Wedge (2pcs)
• UT Normal Probe 2.5P20 (1pc)
• UT Angle Probe 2.5P13×13 60° (1pc)
• UT Probe Cable LEMO 00-BNC (2pcs)
• Li-ion battery (1pc)
• Charger (1pc)
• Power converter (1pc)
• HDMI Cable (1pc)
• Crossover Cable (1pc)
• Allen Wrench (S2.5) (1pc)
• Instrument Suitcase (1pc)
• USB Drive Disk (8G) (1pc)
• User Manual (1pc)
• Certificate (1pc)

• TOFD Probe 5MHz 6mm / 7.5MHz 3mm
• TOFD Wedge 60° with anti-wear nail, 70° with anti-wear nail
• TOFD Wedge R100 curve surface R100/0°
• TOFD Probe Cable LEMO 00-LEMO 00
• Non-Parallel TOFD Scanner
• Scanner for Phased Array
• Encoder Cable Extension
• Other Allen Wrench for TOFD
• Other probes/wedge for Phased Array and TOFD
• Calibration block
