उत्पाद विवरण:
|
| श्रेणी: | 50~20,000 एफपीएम | संकल्प: | 0.1 एफपीएम(50~999.9 एफपीएम) 1 एफपीएम(1000 एफपीएम से अधिक) |
|---|---|---|---|
| शुद्धता: | ±(0.05%n+1d) | नमूना लेने का समय: | 0.3 सेकंड |
| फ्लैश ट्यूब लाइफ: | 100 मिलियन बार | ||
| प्रमुखता देना: | digital stroboscope rotation speed meter,non-contact stroboscope measuring tool,strobe meter with warranty |
||

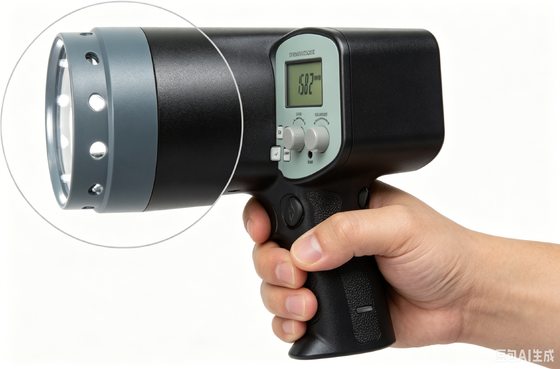

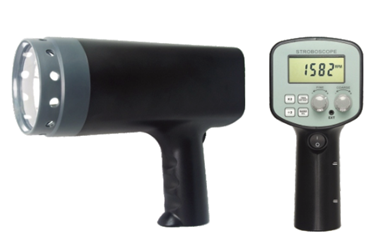

HDTS-3350PC Digital Stroboscope Non-contact Rotation Speed Measuring Strobe Meter
The Stroboscope is capable to provide image of single, two or multiple stillness for the vibration object, rapidly rolling object, can also use to observe the movement tracks.
|
Display |
LCD |
|
|
Range |
HDTS-3350PC |
50~20,000 FPM |
|
Resolution |
0.1 FPM(50~999.9 FPM) |
|
|
1 FPM(Over 1000 FPM) |
||
|
Accuracy |
±(0.05%n+1d) |
|
|
Sampling Time |
0.3 Seconds |
|
|
Internal / External Triggering Conversion |
||
|
External Trigger Level |
3~24 V |
|
|
H/L Range |
Flashing Light is much Brighter at |
|
|
Low Range than at High Range |
||
|
With x2 , ÷2 for Fast Check |
||
|
Flash Tube Life |
100 Million Times |
|
|
Operating Conditions |
Temperature:0~40ºC |
|
|
Humidity:<85%RH |
||
|
Power Supply |
AC 220V(Optional AV 110V) |
|
|
Power Consumption |
About 50W |
|
|
Dimensions |
215x85x180 mm |
|
|
Weight |
About 1000 g |
|
|
Standard Accessories |
Main Unit |
|
|
Carrying Case(B08) |
||
|
Operation Manual |
||
|
Optional Accessories |
Square Flashing Tube |
|
Features
* Digital display gives exact reading with no guessing or errors; Wide measuring range and high resolution.
* Automatic stop flashing to save electricity and improve flash tube lifetime.
* Internal / external triggering fast conversion; x2 and ÷2 button for fast adjustment.
* Use photoelectric signal while external triggering, achieve automatic tracking function of the pattern.
* Use microcomputer technology, emerging technologies, anti-jamming technique and other advanced technology, it can measure the rotative velocity without contacting the object.
