उत्पाद विवरण:
|
| प्रोडक्ट का नाम: | रॉकवेल कठोरता परीक्षक | नमूना: | एचआर-पी200 |
|---|---|---|---|
| प्रारंभिक परीक्षण बल: | 10 किग्रा | परीक्षण संकल्प: | 0.1एचआर |
| वज़न: | 5.3 किग्रा | परिचालन तापमान: | 0 ~ 50 ℃ |
| प्रमुखता देना: | digital Rockwell hardness tester,magnetic hardness testing machine,portable Rockwell hardness tester |
||

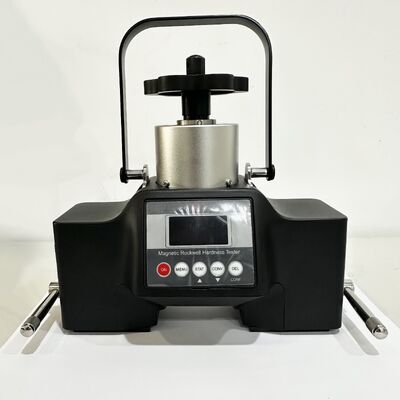

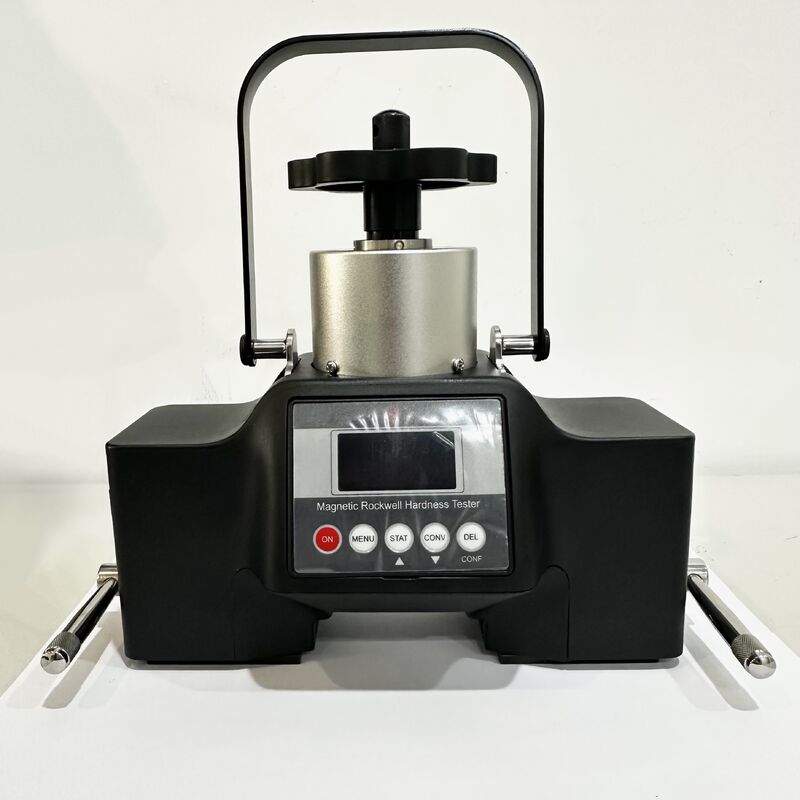

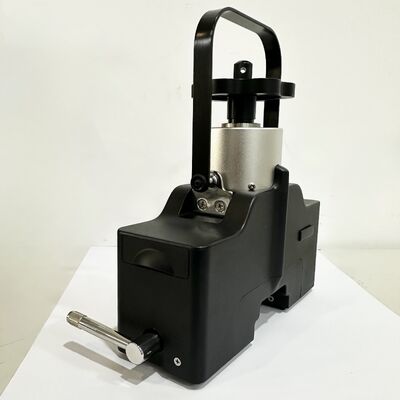

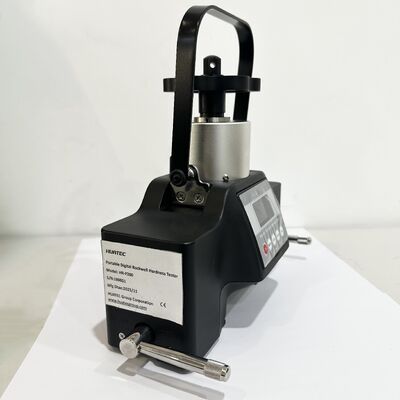

DIGITAL MAGNETIC ROCKWELL HARDNESS TESTER
APPLICATION
Apply to test too large or heavy iron and steel parts for the desk testers.
Test the hardness of steel parts, bearings, moulds; large and medium-sized heating parts.
Test a large batch of parts piece by piece on site.
Replace inaccurate and unreliable Leeb hardness tester, in a wide range of manufacture industry.
FEATURES
World leading product designed and manufactured by HUATEC Group with patent, because of high-accuracy sensor and unique distance measuring technology, reaching far higher test accuracy than other portable hardness testers.
It is fixed onto the surface of an iron and steel part smartly with magnetic chucks. Simply reached one side of the part, the test could be accomplished. Only if the surface is available, an iron and steel part could be tested, no matter what shapes and sizes are.
It follows the Rockwell Hardness Test Principle, and complies with relevant regulation of ISO6508, and ASTM E18 standards.
It simplifies the operation steps of Rockwell Hardness Test: directly load total test force; maintain it for a few seconds; release the total test force and then the test is finished. It takes about only 10 seconds for a test, high effective.
It permits customer to calibrate the tester with a standard block at any time.
It could be operated under a temperature range of 0℃ to 50℃ either indoor or outdoor.
TECHNICAL PARAMETERS
| Initial Test Force | 10 kgf |
| Total Test Force | 60 kgf, 100 kgf, 150 kgf |
| Testing Range | 20~88 HRA, 20~100 HRB, and 20~70 HRC |
| Testing Resolution | 0.1 HR |
| Indication Error | complying with ISO6508, ASTM E110 and ASTM E18 standards |
| Repeatability Error | complying with ISO6508, ASTM E110 and ASTM E18 standards |
| Test Force Error | ≤±1% |
| Operating Temperature | 0~50℃ |
| Nominal Dimension | 245 mm×105 mm×138 mm |
| Weight | 5.3 kg |
| Test Piece Surface | Flat: Area≥195 mm×60 mm Thickness≥5 mm Cylinder: Diameter≥60 mm Length≥200 mm Thickness≥8 mm |
STANDARD ASSEMBLY
Hardness Tester HR-P200
120°Diamond Indenter
1/16” Carbide Alloy Ball Indenter
Rockwell Hardness Block
Seat Iron
Recharger
Battery Box
Carrying Case
Instruction Manual
